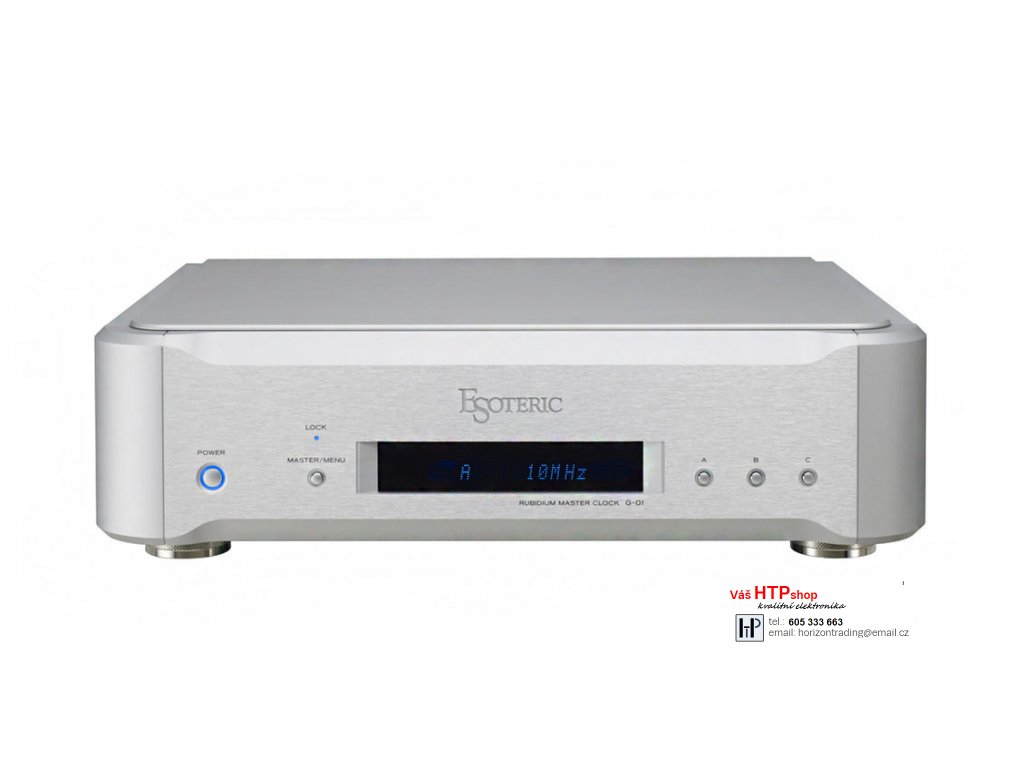

Esoteric G-01
Kód: 11387
Doprava ZDARMA
Při objednávce zboží nad 5.000,- Kč poskytujeme dopravu zdarma
Detailní popis produktu
| Clock outputs | CLOCK OUT | 44.1 kHz setting | 44.1, 88.2, 176.4, 352.8, 705.6 kHz |
| 1.4112, 2.8224, 5.6448, 11.2896, 22.5792 MHz | |||
| 48 kHz setting | 48, 96, 192, 384, 768 kHz | ||
| 1.536, 3.072, 6.144, 12.288, 24.576 MHz | |||
| Both settings | 100 kHz, 10 MHz | ||
| Connectors | BNC coaxial (75 Ω) | ||
| Output level | Rectangular wave (TTL level / 75 Ω) | ||
| 10MHz OUT | 10 MHz | ||
| Connectors | BNC coaxial (50 Ω) | ||
| Output level | Sine wave : 0.5 ± 0.1 Vrms / 50 Ω | ||
| Master clock input | Input frequency | Rb+EXT1pps mode | 1pps signal (GPS precision or better) |
| Rb+EXT10M mode | 10MHz (GPS precision or better) | ||
| EXT 10M-IN mode | 10 MHz (within ±10 ppm) | ||
| Connector | BNC coaxial (50 Ω) | ||
| Input levels | 10MHz | Sine wave: 0.5-1.0 Vrms/50 Ω Square wave:1.5-3.0 Vpp/50 Ω |
|
| 1pps signal | Positive pulse,TTL level/100 kΩ | ||
| Output clock stabilization (approximate time in minutes) |
Until oscillator stabilizes after power turned on | 10 | |
| PLL locking time | 1 | ||
| Frequency stability | Within ±0.1 ppb (-20°C to +65°C) | ||
| Frequency precision | Within ±0.05 ppb (when shipped new) | ||
| General | Power supply | AC 230V, 50Hz AC 120V, 60Hz AC 220V, 60Hz |
|
| Power consumption | 85W (while warming up) 28 W (when stable) |
||
| Dimensions (W x H x D) (including protrusions) |
445 x 131 x 360 mm (17 1/2″x 5 1/8″x 14 1/8″) |
||
| Weight | 13kg (28 1/2 lbs) | ||
| Included accessories | Power cord x 1, Owner's manual x 1, Warranty card x1 | ||
| - This product is available in three different power supply variations shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area. - the shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country. |
|||
